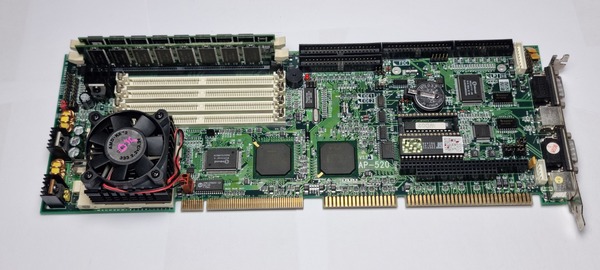

This SBC came from the ATSC Sencore tester device, it was setup to 220Mhz but the cpu supports up to 333Mhz, this is a very very good Super socket 7 system, caps are high quality, it's fast and has a ton of I/O options, i tested all the cpus i could on it and it booted with anything, i think the only annoying thing is related to the battery, it needs to have it installed for POST and i don't really like to keep batteries installed.

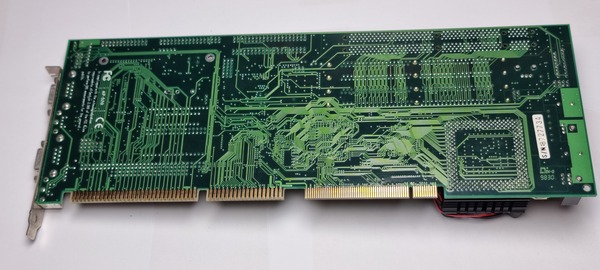

I think the tester was barely used before it was stashed away, the card is in very very good shape, it has no hot spots or anything. The power regulation circuits are pretty decent, nothing gets too hot.

Info
Source	Originally came from the ATSC Sencore Tester
Kind	PICMG
Sold/For sale?	NO
CPU	AMD K6-2 333 W/Fan
RAM	64MB PC100
Dependencies	Backplane, it has no direct power inputs visible
Installed On	Nothing, in storage
Last Tested	20/March/2024
Retroweb	https://theretroweb.com/motherboards/s/lanner-electroni-ap-520

More info

This board has a mix of slots for ram, four for 72 pin EDO Ram, and 2 for PC100, i don't think you can mix them.
It provides power for a DOM on the two ide slots
The battery needs to be replaced for it to POST i had to install a Battery holder to get it to properly work, probably the tester was scrapped because of that.
It needs an external video card, i don't think it can output the BIOS over serial, i need to test.

Drivers	Chip ID	Links
Video	N/A
Chipset	430TX
Audio	N/A	N/A
Network	N/A
PCMCIA	N/A
AV IN	N/A
CDROM	N/A
Manual	Stolen from theretroweb	datasheet info usb pinout jumpers
BIOS		Bin File
