- This card provides power on the ide connector but it's 3.3v so it only work with some DOMs.
- Dallas chip :c, mine is still working fine though
- it's full of small caps, i don't see any leakage but who knows.
- there is no audio onboard
Portwell Robo-698D
This card came from a "Polycom MGC+50 ReadiConvene Unified Multipoint Conferencing Bridge" appilance, it came in a modular car meant to be swappable, i just kept the SBC by itself, it also came with a HDD, it ran Windows XP.
Info Source Polycom MGC+50 ReadiConvene Unified Multipoint Conferencing Bridge Kind SBC, PICMG 1.0 Sold/For sale? No CPU Single Celeron 850Mhz socket 370 RAM 256MB, Up to 2Gb of pc133 ram. Dependencies It can work standalone with an AT PSU Installed On N/A Last Tested Jun/2024 Retroweb nope More info

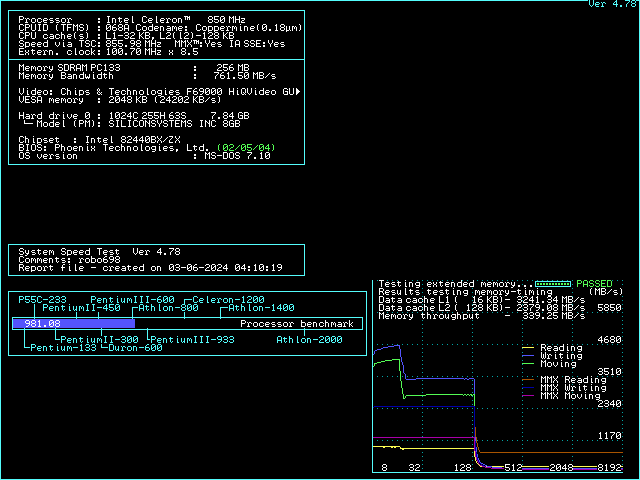

Drivers Chip ID Links Video Chips B69000 ALL Network Intel Pro 100 ALL Manual Manual BIOS Award - 02/05/04 Mine Photos
